Secure CI/CD DevSecOps pipeline

April 8, 2025 • ☕︎ 2 min read

Overview

This project demonstrates a fully integrated and secure CI/CD pipeline built with DevSecOps principles and GitOps deployment. From automated testing and vulnerability scanning to Kubernetes deployment via Argo CD, this pipeline ensures that every commit is verified, tested, secured, and deployed in a streamlined and reproducible way.

Architecture

CI Pipeline: Builds, tests, and scans the application, producing a secure Docker image.

CD Pipeline: Updates a Kubernetes manifest repo, which Argo CD syncs to the cluster.

CI Pipeline (Jenkins)

The CI pipeline is triggered on every push to the source code repository. It includes:

Stage	Description	Tools Used
Checkout	Pulls code from GitLab	GitLab
Build & Unit Test	Compiles code and runs unit tests	Maven
Code Coverage	Analyzes test coverage	JaCoCo
SCA	Detects vulnerable third-party dependencies	OWASP Dependency Check
SAST	Static security scan on proprietary code	SonarQube
Quality Gate	Blocks pipeline if coverage/vulnerabilities exceed thresholds	SonarQube Quality Gates
Build Image	Creates a Docker image	Docker
Scan Image	Scans the image for vulnerabilities in all layers	Trivy
Smoke Test	Validates basic container health (port, response)	Custom shell script
Trigger CD Job	Passes Docker tag to CD pipeline	Jenkins downstream job trigger

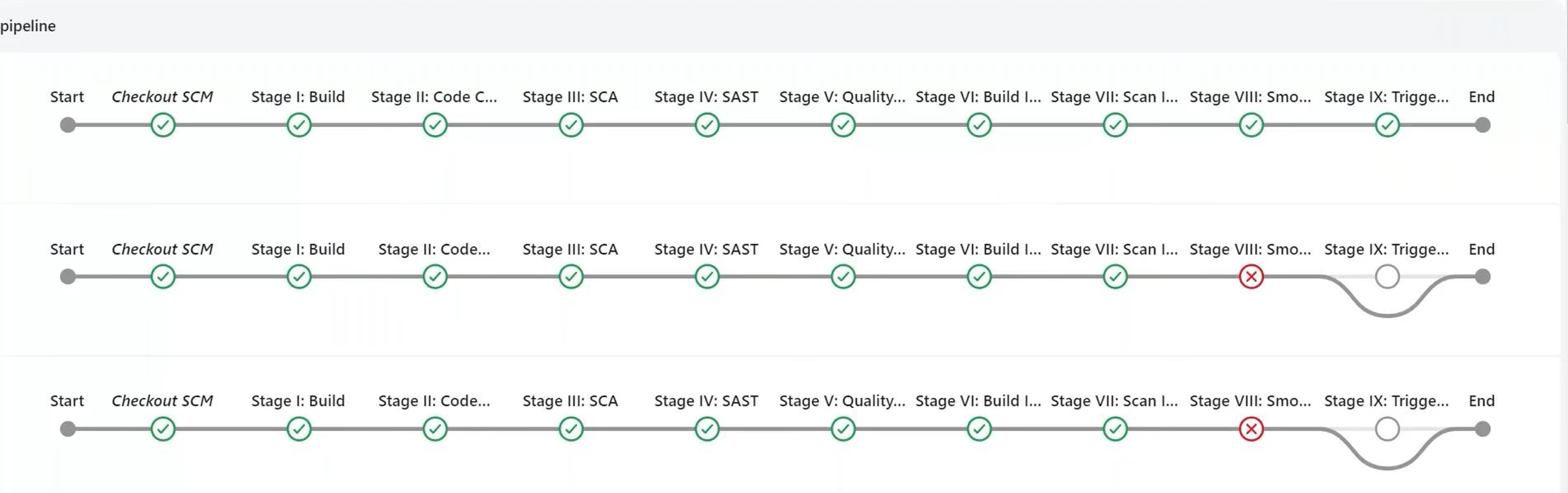

Full pipeline

SonarQube dashboard showing passed quality gate

CD Pipeline (GitOps with Argo CD)

Once the image passes all checks, the CD pipeline updates the Kubernetes manifest repo with the new Docker image tag. This triggers a GitOps deployment using Argo CD.

Component	Description
Manifest Repo	Stores YAML files (Deployment, Service, etc.)
Update Script	Jenkins modifies the image tag in `deployment.yaml`
Argo CD	Monitors the manifest repo and syncs changes to the cluster
Deployment	New image is pulled and deployed to Kubernetes via Argo CD

DevSecOps Highlights

Automated Security: SCA, SAST, and container scanning are enforced at build time. Gatekeeping: Code can’t progress unless quality and security gates are passed. Zero Cluster Access: Jenkins never directly talks to Kubernetes. Reproducibility: Every deployment is traceable through Git commit history. Rollback Ready: Easily revert deployments by updating YAML to a previous tag.

Repository Structure

├── Jenkinsfile
├── Dockerfile
├── sonar-project.properties
├── manifests/
│   └── deployment.yaml
├── scripts/
│   ├── smoke-test.sh
│   └── update-yaml.sh

Learnings

Implementing DevSecOps as code improves release security without slowing down development.
GitOps reduces risk by decoupling build and deploy workflows.
Tooling like Trivy and SonarQube can be integrated early to shift security left.
